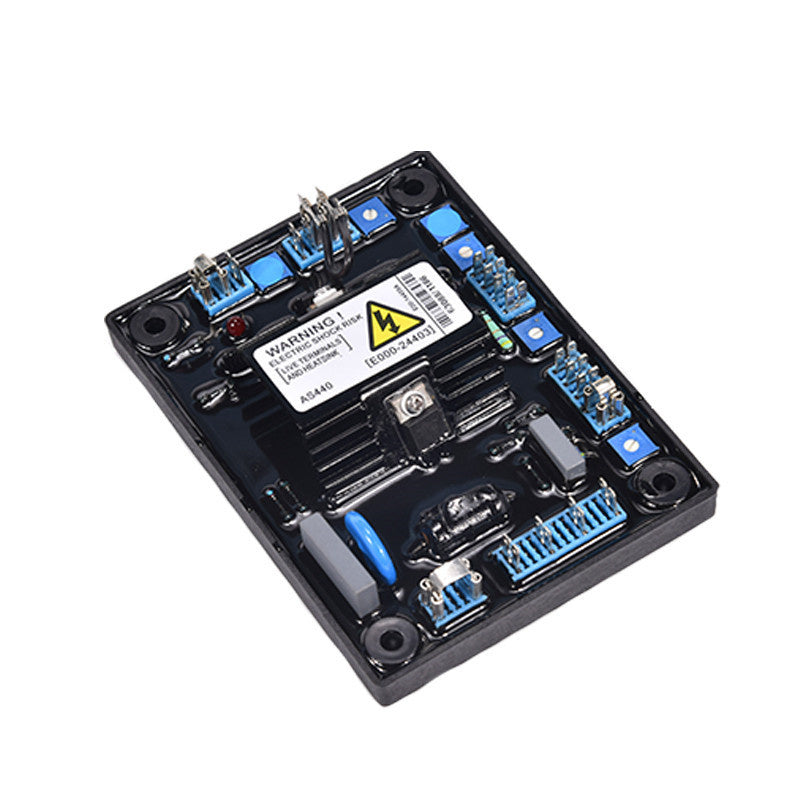

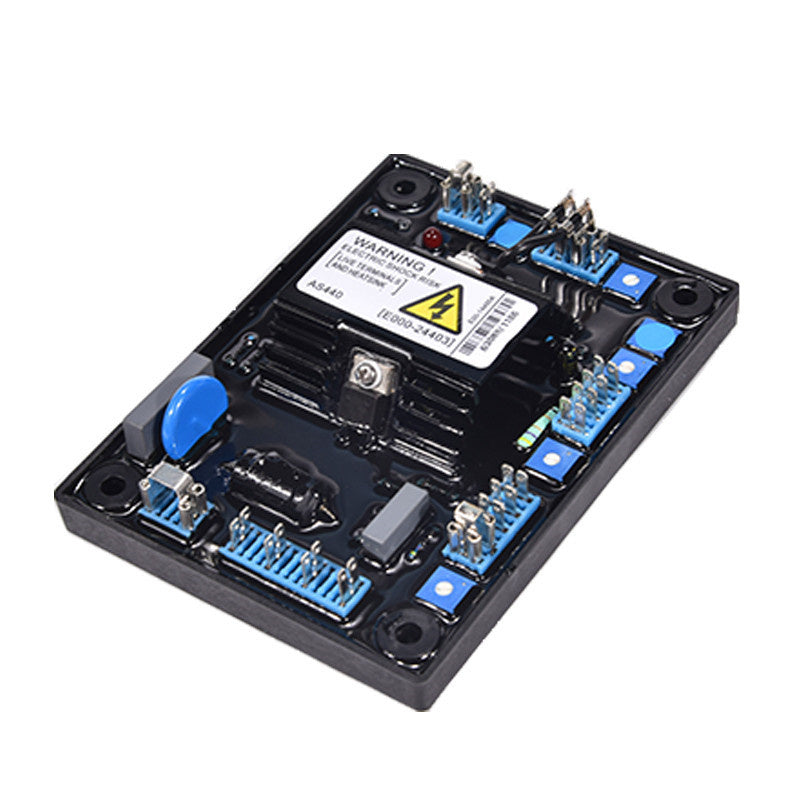

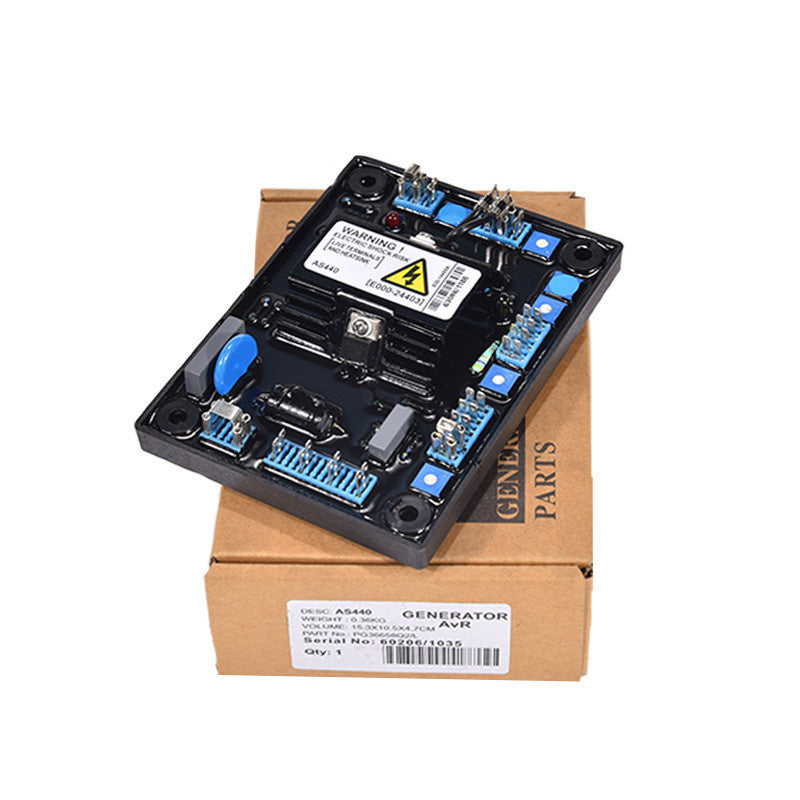

COPY Stamford AS440 Voltage Regulator

AS440 is a half wave phase controlled thyristor type AVR
and forms part of the excitation system for a brushless
generator. The design employs Surface Mount Technology
(SMT) for high integration of features in a small footprint
AVR.
Positive voltage build up from residual levels is ensured by
the use of efficient semiconductors in the power circuitry of
the AVR. The power and voltage sensing circuits have
separate terminals, allowing the excitation power to be
derived directly from the stator winding for basic
applications or from an auxiliary winding if sustained short
circuit performance is required.
