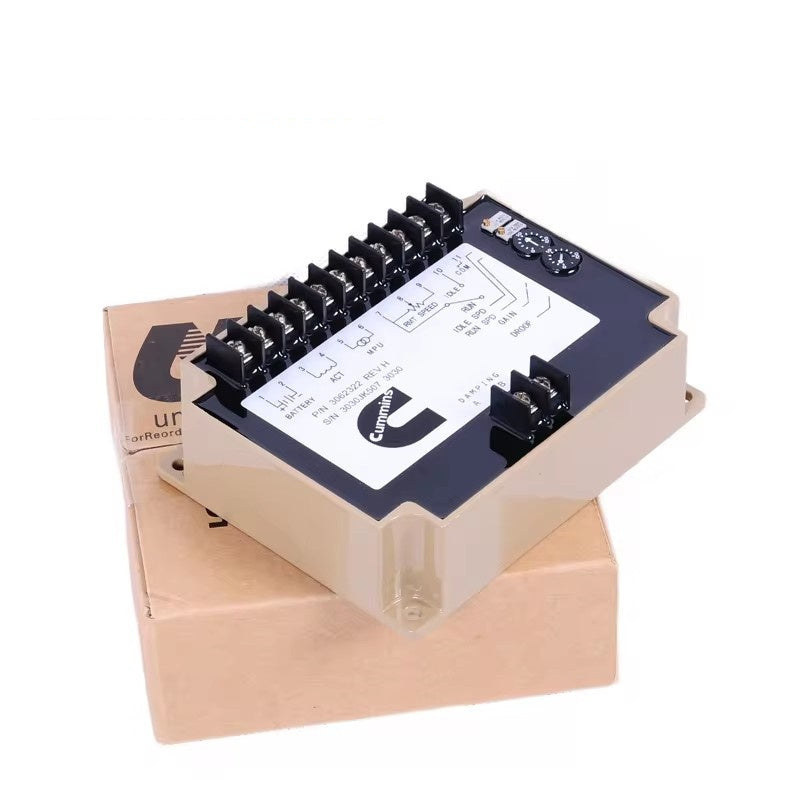

Original Cummins Speed Controller 3062322

appliction: generator Brief Introduction of functions:speed controller is a design with full electric closed loop path control function, which can It controls the Cummins motor perfectly when connecting with the combined actuator in the EFC system, since it can Controls engine speed quickly and accurately once there is an instant load change. electrical specification: Model Number: 3062322 RPM stability: Less than± 0 25% Speed range: 1 KHz ~ 6.5 KHz Thermal stability: max. 0. 7% IDLE Regulation: 260 ± 20Hz DROOP regulation: minimum 15Hz ± 6Hz / 1 amplifier Maximum: 400Hz ± 75Hz / 1 Amp External speed regulation: ± 200Hz (with 1 K ohm connected) Auxiliary input sensitivity: 148Hz / 1 V., ± 10Hz Impedance: 1M ohm
